Viewing IX Telemetry
To view IX Telemetry in the Megaport Portal, choose Monitoring and Diagnostics > IX Telemetry.Using IX Telemetry

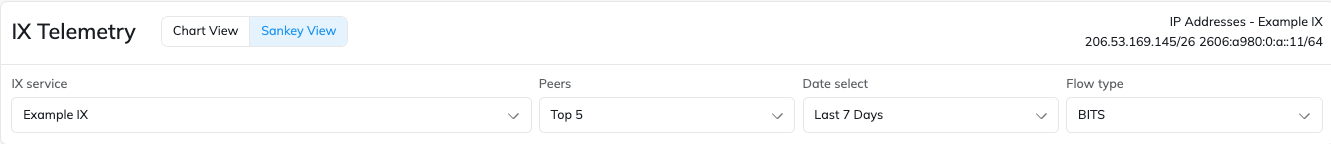

The IX Telemetry page displays data for all IX connections that your company has deployed. Use the filters to view the data you want to see:- IX service — Select the IX service for which you want to view telemetry.
- Peers — Select the top 5 peers by traffic, or select specific peers to view.
- Date select — Select the date range for which you want to view telemetry data.
- Flow type — Select BITS or PACKETS.
Using the traffic view

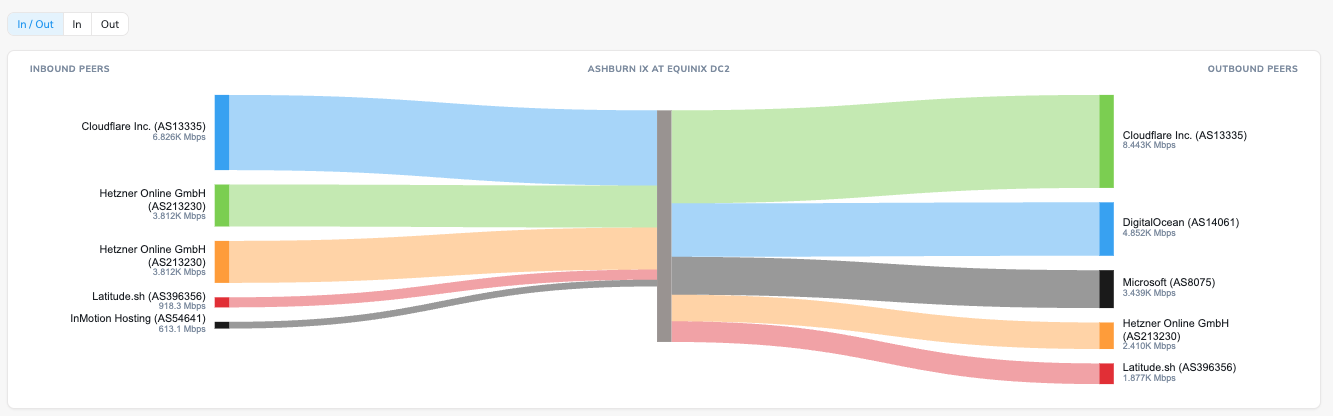

The traffic view displays traffic flows between peers, with the width of each line representing the volume of traffic. Hover over a line to view the traffic volume for that peer. Use the buttons to display incoming traffic, outgoing traffic, or both. You can also filter the data by peer or limit the view to the top five peers by traffic volume.Viewing traffic over time

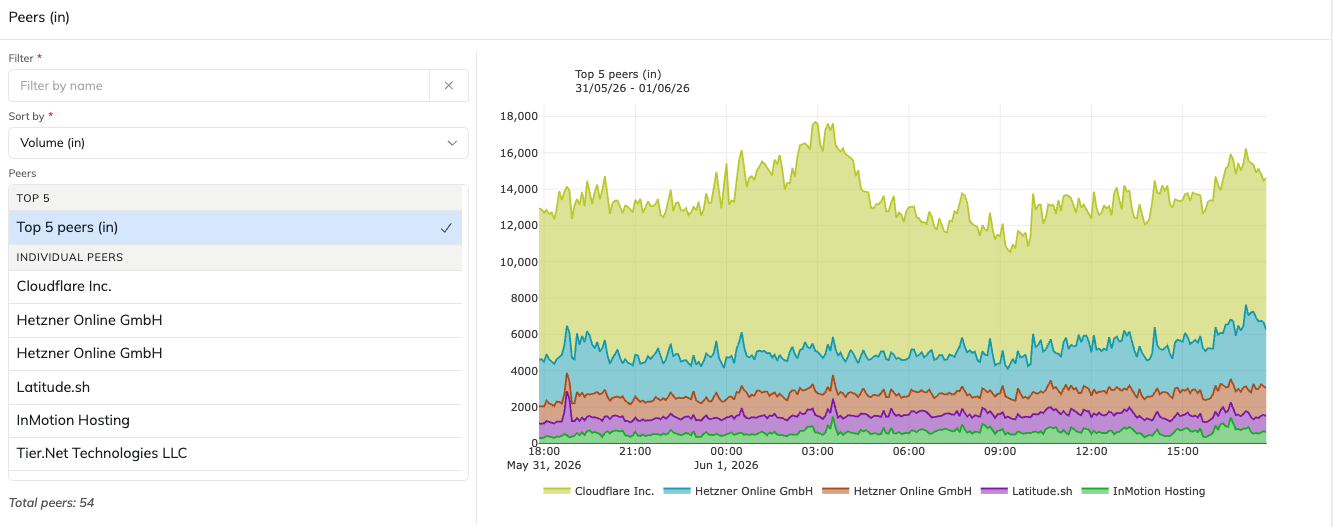

Below the traffic view diagram on the same page, a time-series chart shows when traffic changed over time. The time-series chart uses the same controls (incoming, outgoing, or both) that the traffic view uses. The chart has no separate toggle or control. For a single direction (incoming or outgoing), the chart shows one line per selected peer. When both directions are shown, there is a solid line for each inbound peer and a dashed line for each outbound peer. Each peer’s line color matches its color in the traffic view diagram. Hover the cursor over a line to view the peer label in the format Company (ASxxxx). When both traffic directions are displayed, the label also indicates In or Out.When there is no data, the chart displays “No graph data available”.
