Creating an AWS Hosted VIF for an MVE with Palo Alto SD-WAN

Hosted VIFs can connect to public or private AWS cloud services: a Hosted VIF cannot connect to a transit virtual interface. These connections share bandwidth.

To create a Hosted VIF from an MVE to AWS

1. In the Megaport Portal, go to the Services page and select the MVE for the connection.

2. Click +Connection and click the Cloud tile.

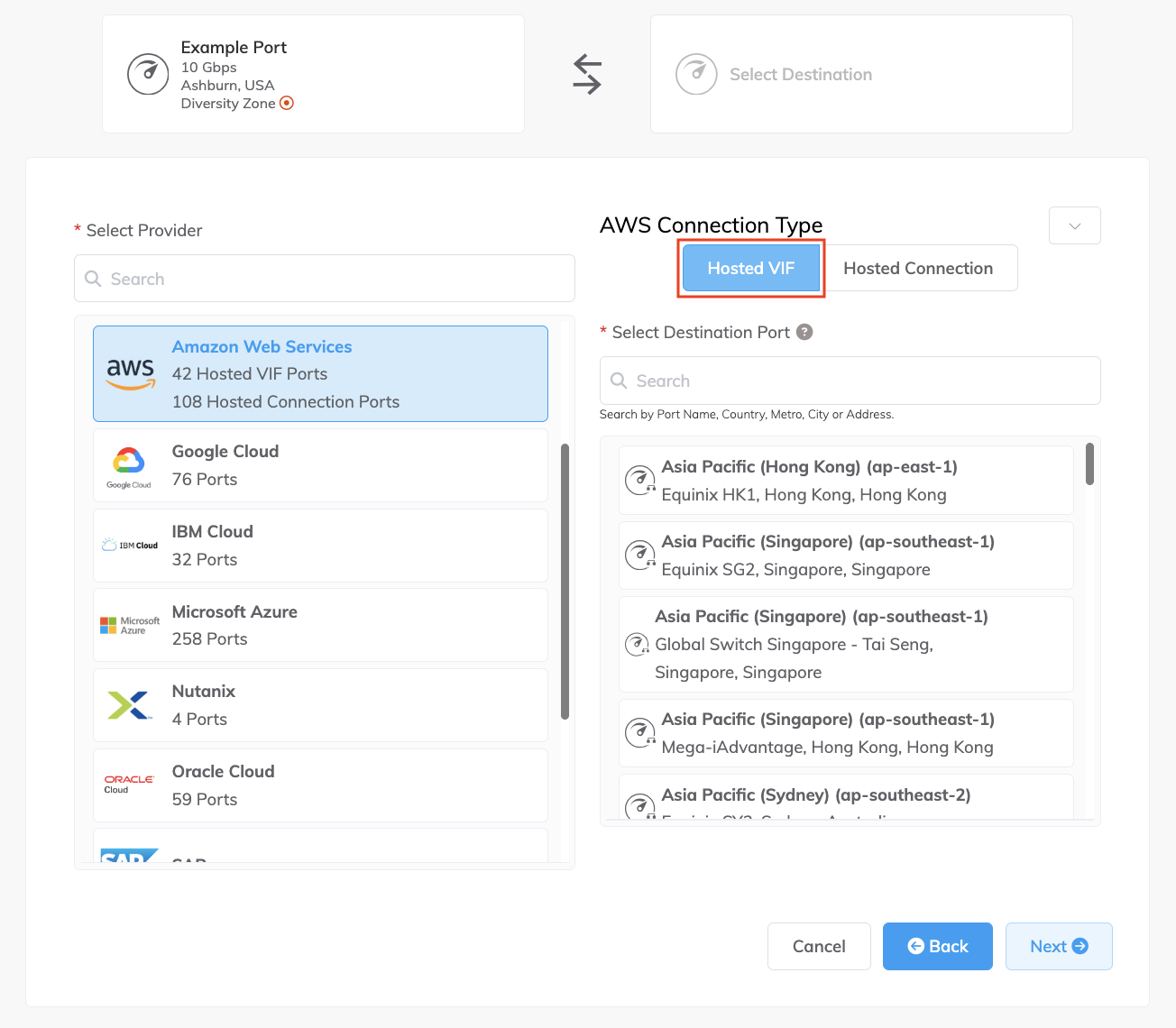

3. Select AWS as the service provider, select Hosted VIF as the AWS Connection Type, select the destination port, and click Next.
   You can use the Country filter to narrow the selection.


4. Specify the connection details:

   • Connection Name – The name of your VXC to be shown in the Megaport Portal.

     Tip

     Match this to the AWS Connection Name on the next screen for easy mapping.

   • Service Level Reference (optional) – Specify a unique identifying number for the VXC to be used for billing purposes, such as a cost center number or a unique customer ID. The service level reference number appears for each service under the Product section of the invoice. You can also edit this field for an existing service.

     Note

     Partner-managed accounts can apply a Partner Deal to a service. For more information, see Associating a Deal With a Service.

   • Rate Limit – The speed of your connection in Mbps. Accepted values range from 1 Mbps to 5 Gbps in 1 Mbps increments. Note the sum of all hosted virtual VXCs to a service can exceed the MVE capacity, but the total aggregate will never burst beyond the MVE capacity.

   • VXC State – Select Enabled or Shut Down to define the initial state of the connection. For more information, see Shutting Down a VXC for Failover Testing.

     Note

     If you select Shut Down, traffic will not flow through this service and it will behave as if it was down on the Megaport network. Billing for this service will remain active and you will still be charged for this connection.

   • A-End vNIC – Select an A-End vNIC from the drop-down list. See Creating an MVE in the Megaport Portal for more information about vNICs.

   • Preferred A-End VLAN (optional) – Specify an unused VLAN ID for this connection.
     This must be a unique VLAN ID on this MVE and can range from 2 to 4093. If you specify a VLAN ID that is already in use, the system displays the next available VLAN number. The VLAN ID must be unique to proceed with the order. If you don’t specify a value, Megaport will assign one.

   • Minimum Term – Select No Minimum Term, 12 Months, 24 Months, or 36 Months. Longer terms result in a lower monthly rate. 12 Months is selected by default.
     Take note of the information on the screen to avoid early termination fees (ETF). See VXC Pricing and Contract Terms and VXC, Megaport Internet, and IX Billing for more information.



5. Click Next.

6. Specify the details for the AWS service.

   Here are details for each field:

   • Select Public or Private.

     • Private – Access private AWS services such as a VPC, EC2 instances, load balancers, RDS DB instances, on private IP address space.

     • Public – Access public AWS services such as Amazon Simple Storage Service (S3), DynamoDB, CloudFront, and Glacier. You’ll also receive Amazon’s global IP prefixes (approximately 2,000 prefixes).

       Note

       Public VIFs require manual intervention from Amazon and could take up to 72 hours. For more information, see Configuring Public AWS Connections with IP Addresses Provided by AWS.

   • AWS Connection Name – This is a text field and will be the name of your virtual interface that appears in the AWS console. The AWS Connection Name is automatically populated with the name specified in a previous step.

   • AWS Account ID – This is the ID of the account you want to connect. You can find this value in the management section of your AWS console.

   • Customer ASN (optional) – Specify the ASN used for BGP peering sessions on any VXCs connected to the MVE. This value is defined when you configure the MVE and, once defined, it cannot be changed.

   • BGP Auth Key (optional) – Specify the BGP MD5 key. If you leave this blank, Megaport negotiates a key automatically for you with AWS, and displays the key in the Megaport Portal. The key is not displayed in the AWS console.

   • Customer IP Address – The IP address space (in CIDR format) used on your network for peering. This field is optional for private connections and if left blank, Megaport assigns an address.

   • Amazon IP Address – The IP address space in CIDR format assigned in the AWS VPC network for peering. This field is optional for private connections and if left blank, Megaport automatically assigns an address.

   • Prefixes (optional) – (visible for Public connections only) Specify IP Prefixes to announce to AWS. Specify the prefixes you will advertise when deploying a Public Direct Connect (RIR-assigned IPv4 addresses only).

     Once you configure Prefixes for a Public connection, you cannot change them and the field is grayed out. To change this value, create a support ticket with AWS so they can make this change in a non-impacting way. Or, you can cancel the Hosted VIF and reorder. In both cases, you need to wait for AWS to manually approve the request.

7. Click Next to proceed to the connection detail summary, add the VXC to the cart, and order the connection.

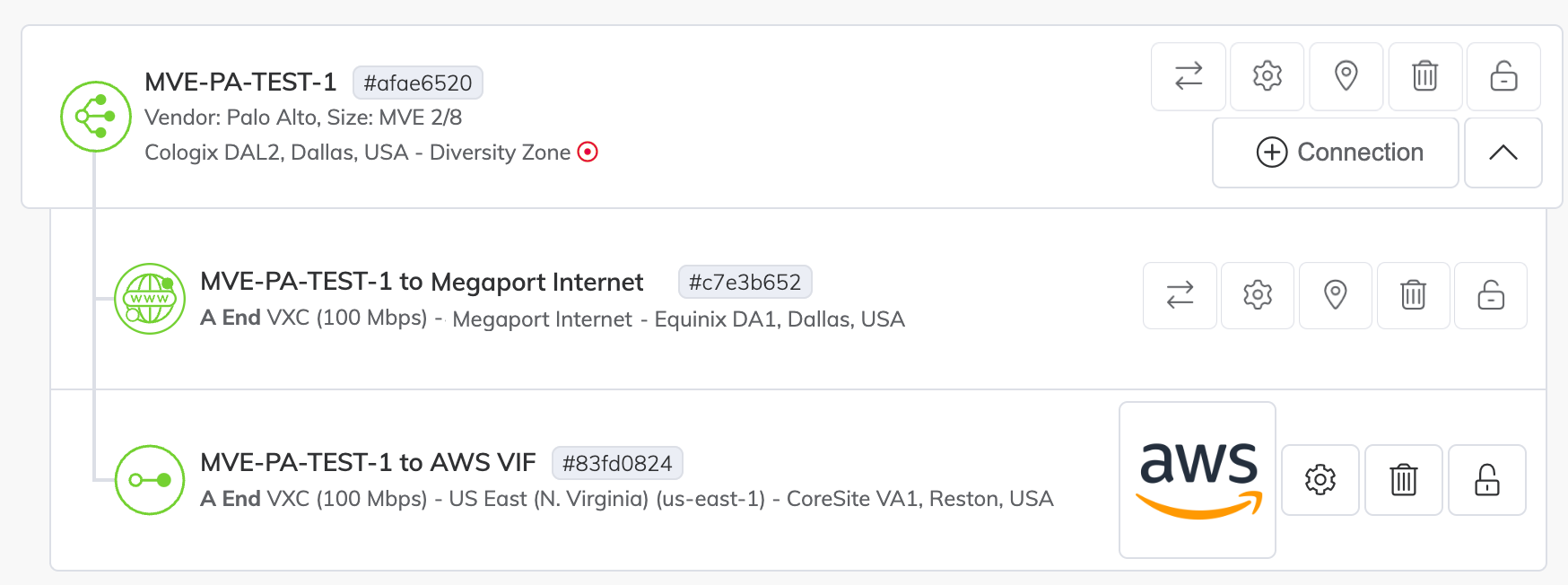

The AWS VXC appears as a connection for the MVE in the Megaport Portal.

Next, accept the connection in AWS.

Accepting the Virtual Interface for Private Connections

A few minutes after ordering a private Hosted VIF VXC, the corresponding inbound VIF request is visible on the AWS Direct Connect > Virtual Interfaces page in the AWS console. (This is specific to the region associated with the target AWS port.) If your VIF doesn’t appear after a few minutes, confirm that you are viewing the correct region.

To review and accept the private virtual interface

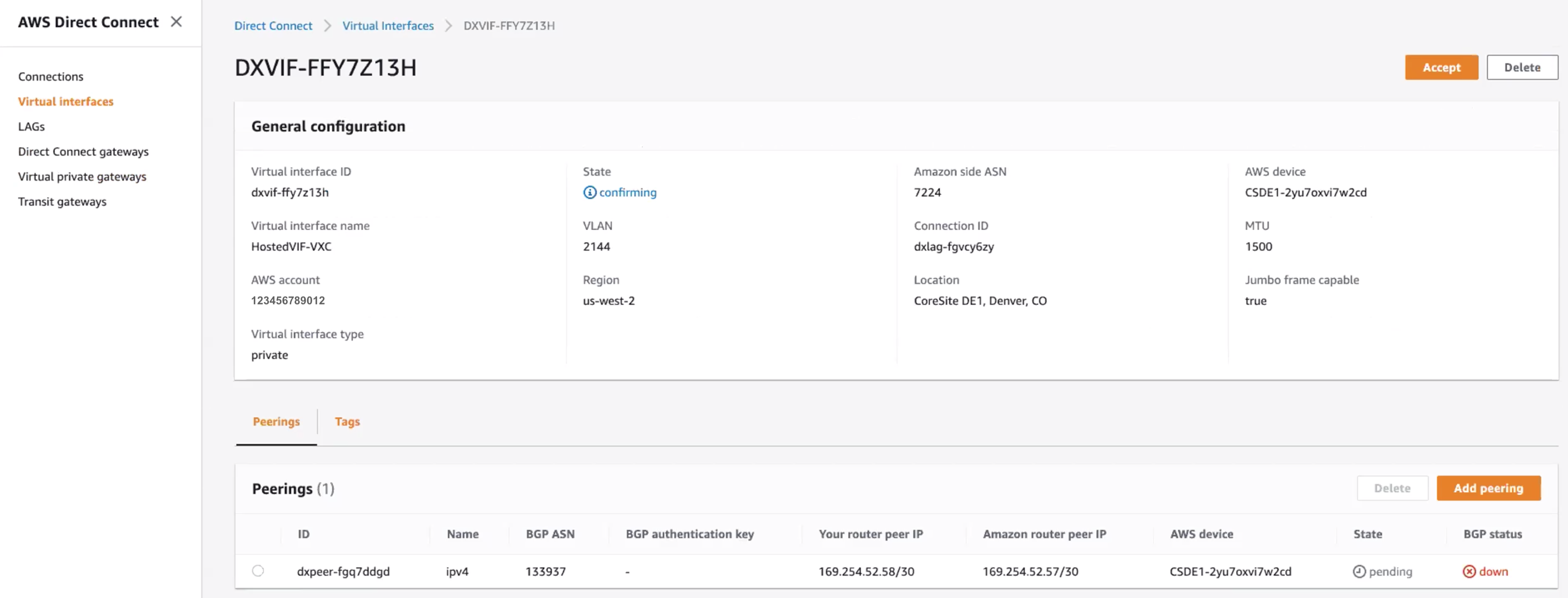

1. From the AWS Direct Connect > Virtual Interface page, click the ID of the interface to display the configuration and peering details.


   The name and account ID of the VIF should match the values supplied in the Portal and the BGP ASN should match the Customer ASN configured with the VXC. The Amazon ASN is the default region’s AWS ASN and not the value specified during the configuration - this is updated when the virtual interface is accepted and assigned.

2. Click Accept.

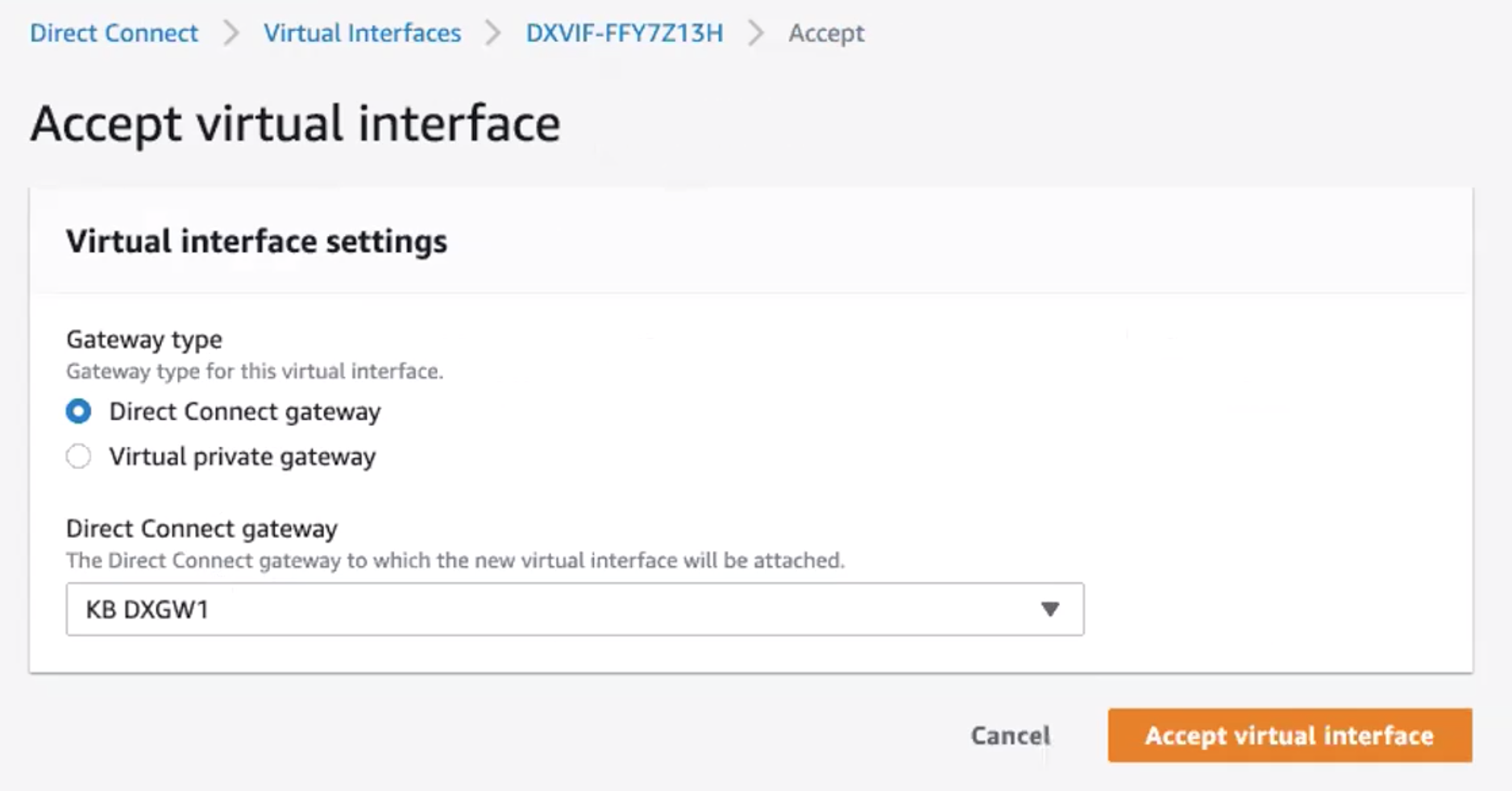

3. Select the gateway type and then the specific gateway for this new virtual interface.


4. Click Accept virtual interface.

The state of the connection changes from confirming to pending, and then changes to available once BGP is established. Note that sometimes there is a delay in the available BGP status appearing on the AWS end, though you can confirm the current state of the Layer 3 link through the Portal view.

Accepting the Virtual Interface for Public Connections

Several minutes after ordering a public Hosted VIF VXC, the corresponding inbound VIF request appears on the AWS Direct Connect > Virtual Interfaces page in the AWS console. This is specific to the region associated with the target AWS port.

To review and accept the public virtual interface

1. From the AWS Direct Connect > Virtual Interface page, click the ID of the interface to display the configuration and peering details.
2. Review the configuration details and click Accept, and when prompted, click Confirm.

The state of the connection changes from confirming to verifying. At this point, the connection needs to be verified by Amazon - a process that can take up to 72 hours. When verified, the state changes to available.

Adding AWS connection details to Palo Alto VM-Series

After you create the connection from your MVE to AWS and set up the connection in the AWS console, you need to configure it in VM-Series. This involves adding a device interface and configuring BGP settings.

To configure an AWS connection between a Palo Alto MVE and AWS

1. Collect the connection details from the Megaport Portal.
   Click the gear icon for the AWS connection from your MVE and click the Details view. Note the values for the A-End VLAN, Customer Address (and CIDR), Amazon Address, and Customer ASN.

2. Log in to the VM-Series.

3. Choose Network > Interfaces.

4. Select the A-End MVE (ethernet1/1).

5. Click Add Subinterface at the bottom of the screen.


6. Provide these details:

   • Interface Name – Enter a name for the subinterface. In the adjacent field, enter a number to identify the subinterface.

   • Comment – Enter an alternate name, for example, AWS VIF dxvif-fh9aokej.

   • Tag – Specify the A-End inner VLAN value associated with the AWS VXC you created in the Megaport Portal.

   • Virtual Router – Select a virtual router to the interface, as required by your network.

7. Select the IPv4 tab.

8. Select Static as the Type.
9. Click +Add to add a new IP address.
10. Enter the IPv4 address and netmask.
11. Click OK.
12. Click Commit in the top right corner.

13. Review the changes and click Commit.

The new VLAN interface appears with your ethernet1/1 physical interface.

Next, you will create a security zone so the interface can route traffic.

To create a security zone

1. Select the ethernet1/1.1010 subinterface.
2. Select New Zone from the Security Zone drop-down list.
3. Specify a name for the security zone.

4. Click +Add under Interfaces and add ethernet1/1.1010 to the security zone.
5. Specify any additional details as required for your network security.
6. Select New Zone Protection Profile from the Zone Protection Profile drop-down list.
7. Specify any details as required for your network security. This example uses all the defaults.

8. Click OK.
9. Click OK in the Layer3 Subinterface screen.
10. Click Commit in the top right corner.

11. Review the changes and click Commit.

At this point, you have created the interface. Next, you will create the BGP session.

To create the BGP session

1. Choose Network > Virtual Routers.
2. Select the virtual router.

3. In the left pane, select BGP.
4. Provide the following BGP details:
   • Enable – Select this check box to start the BGP session after committing these changes.
   • Router ID – Specify an IP address on this Palo Alto system to use as Router ID. This is the Customer Address value from the Megaport connection details.
   • AS Number – Specify the ASN you used in the AWS VIF order. This is the Customer ASN value from the AWS connection in the Megaport Portal.
5. Click +Add under Auth Profiles.
6. Specify a Profile Name.

7. Enter and confirm the auth password.
8. Click OK.
9. Select the Peer Group tab.

10. Click +Add to add a peer group.
11. Specify a name for the peer group. For example, AWS-VIF-xxxx.
12. Specify eBGP as the session type.
13. Specify any additional details as required for your network.
14. Click +Add to add a new peer.
15. Specify the details for the peer:
    • Name – Specify a name for the peer.
    • Peer AS – Specify the Autonomous System Number (ASN) for the peer.
    • Local Address – Select the proper subinterface and IP address from the drop-down list.
    • Peer Address – Enter the AWS side IPv4 address. This is the Amazon Address from the Megaport Portal Connection Details.
16. Select the Connection Options tab.

17. Select the previously created Auth Profile.
18. Click OK in the Peer Group - Peer screen.
19. Click OK in the BGP - Peer Group/Peer screen.
20. Click OK in the Virtual Router screen.

21. Click Commit in the top right corner.

22. Review the changes and click Commit.

Validating your AWS connection

To check the status of the BGP peer

1. Choose Network > Virtual Routers.
2. Locate your virtual router (default).
3. Click More Runtime Stats in the Runtime Stats column on the right.

4. Select the BGP tab, then select the Peer tab.

5. Verify that the peer status is Established.


   You can also check the status in your AWS Direct Connect portal (this might take a few minutes to refresh).


---
