Google MVE Connections

Creating a Google Cloud Services Connection for an MVE with VMware SD-WAN

You can create a network connection from an MVE (VMware Edge) to Google Cloud through Partner Interconnect.

When connecting to Google Cloud Platform (GCP) through Partner Interconnect with Megaport, the Virtual Cross Connect (VXC) forms the Layer 2 component of the connection and Layer 3 BGP is established directly between the customer and GCP.

Important

Before you begin, create an MVE (Edge) in Orchestrator. For more information, see Creating an MVE. The MVE needs to be in the active state.

Important

Google Cloud requires BGP multihop support, which is first supported in VMware SD-WAN 4.3. If needed, you can upgrade the VMware version on the MVE through the VMware console.

There are three parts to adding a Google Cloud connection to your MVE and Orchestrator.

  1. Create a Partner Interconnect attachment in Google Cloud Console or gcloud CLI. Copy the pairing key that is provided as part of the attachment creation. For additional details, see the Google documentation on Google Partner Interconnects.

  2. In the Megaport Portal, create a VXC from your MVE to connect to your Google Cloud attachment.

  3. In VMware Orchestrator, create a new interface and add the details of the Google Cloud connection.

These instructions step through the second and third parts.

Note

MVE for VMware SD-WAN requires configuration steps in both VMware Orchestrator and the Megaport Portal for all cloud connections.

Adding the Google Cloud connection in the Megaport Portal

To set up the GCP connection, you need to create the connection in the Megaport Portal.

To deploy a VXC to Google Cloud Platform from the Megaport Portal

  1. In the Megaport Portal, click +Connection on the MVE to create your VXC.
    Add connection

  2. Click the Cloud tile.

  3. Select Google as the provider.
    Google as the provider

  4. Copy and paste the pairing key from the Google Cloud console into the field in the right-hand pane.
    The relevant Google targets appear based on the region of your GCI Partner connection.

  5. Select the target location for your connection and click Next.

  6. Specify the connection details:

    • Connection Name – The name of your VXC to be shown in the Megaport Portal.

    • Service Level Reference (optional) – Specify a unique identifying number for the VXC to be used for billing purposes, such as a cost center number or a unique customer ID. The service level reference number appears for each service under the Product section of the invoice. You can also edit this field for an existing service.

      Note

      Partner-managed accounts can apply a Partner Deal to a service. For more information, see Associating a Deal With a Service.

    • Rate Limit – The speed of your connection in Mbps. Enter the same rate you selected for your Google port speed.

    • VXC State – Select Enabled or Shut Down to define the initial state of the connection. For more information, see Shutting Down a VXC for Failover Testing.

      Note

      If you select Shut Down, traffic will not flow through this service and it will behave as if it was down on the Megaport network. Billing for this service will remain active and you will still be charged for this connection.

    • A-End vNIC – Select an A-End vNIC from the drop-down list. See Creating an MVE in the Megaport Portal for more information about vNICs.

    • Preferred A-End VLAN – The VLAN for this connection that you will receive through the MVE. This must be a unique VLAN ID on this MVE and can range from 2 to 4093. If you specify a VLAN ID that is already in use, the system displays the next available VLAN number. The VLAN ID must be unique to proceed with the order. If you don’t specify a value, Megaport will assign one.

    • Minimum Term – Select No Minimum Term, 12 Months, 24 Months, or 36 Months. Longer terms result in a lower monthly rate. 12 Months is selected by default.
      Take note of the information on the screen to avoid early termination fees (ETF). See VXC Pricing and Contract Terms and VXC, Megaport Internet, and IX Billing for more information.

    Google connection details

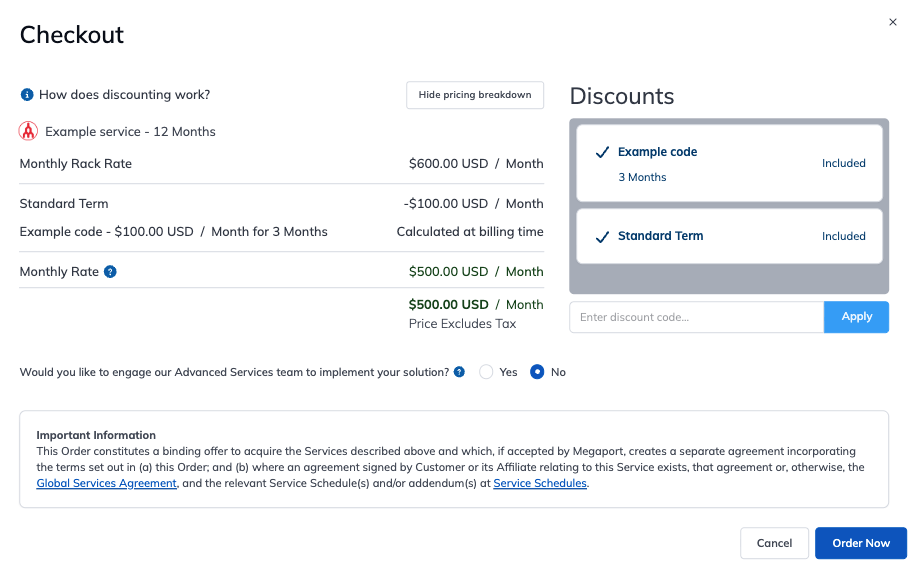

  7. Add the VXC to your order and complete the checkout process.

  8. Once you have deployed the VXC, go back to your attachment in the Google Cloud Console and activate the attachment and configure BGP.
    You will be provided your private IP address from Google to configure BGP. The BGP configuration requires your ASN for the MVE.

Note

The Google ASN will always be 16550.

Adding Google Cloud connection details to Orchestrator

After you create the connection from your MVE to Google Cloud and set up the connection in the Google console, you need to configure it in Orchestrator. This involves configuring BGP settings, ASNs, and VLANs.

To add the Google Cloud connection in Orchestrator

  1. Collect the connection details from the Google console.
    Display the details of the connection you created in Google Cloud for this connection. Note the values for the Peer ASN, Cloud Router BGP IP, and BGP Peer ID.
    Google connection details

  2. Collect the connection details from the Megaport Portal.
    Click the gear icon for the Google connection from your MVE and click the Details view. Note the value for the A-End VLAN.

  3. In Orchestrator, go to Configure > Edges and click the MVE device.
    Select the Edge

  4. Click the Device tab and scroll down to the Interface Settings.

  5. Click +Add Subinterface.
    Add Subinterface
    The Select Interface dialog box appears.

  6. From the Select Interface menu, choose GE3 and for the Subinterface ID enter the A-End VLAN ID configured on the MVE in the Megaport Portal.
    Select Interface
    The subinterface settings appear.

  7. Change the Addressing Type to Static and provide the IP Address, CIDR value, and Gateway.
    These values are available in the VLAN attachment details in the Google Cloud console. The IP address appears in the BGP Peer ID field; the Gateway appears in the Cloud Router BGP IP field.
    Subinterface Settings

  8. Ensure Enable VLAN Tagging is enabled.
    The field is automatically populated with the VLAN ID you specified for the subinterface ID.

  9. Click Update GE3:vlan-id.

  10. In the upper-right corner of the Configure > Edges window, click Save Changes and then confirm.
    This configures the interface, VLAN tags, and IP addresses, which you can test with ping commands through the CLI. (BGP is not yet configured.)

    Note

    Adding the subinterface momentarily disrupts the connection.

To configure BGP for the Google Cloud connection in Orchestrator

  1. In Orchestrator, go to Configure > Edges and click the MVE device.

  2. Click the Device tab and in the Configure Segments section click Enable Edge Override for BGP Settings.
    This override lets us define BGP values specific for this device beyond the profile definition.
    Enable BGP

  3. Click the toggle button to turn on BGP and click Edit.
    The BGP Editor appears.

  4. For Local ASN, add the Peer ASN that you defined in the BGP configuration for the VLAN attachment in the Google Cloud console.

  5. For the Neighbor IP, add the Cloud Router BGP IP from the VLAN attachment details in the Google Cloud console.

  6. Add the Google Cloud ASN of 16550 to the ASN field for the neighbor.
    This is a fixed value from Google Cloud.
    BGP Settings

  7. Click OK and then click Save Changes.

Validating your connection

Under Test & Troubleshoot > Remote Diagnostics, select the MVE and click Run for Troubleshoot BGP - Show BGP Summary to verify the BGP session and ensure the Google Cloud Router is up.

BGP Settings

You can also check connectivity and BGP status from the CLI of the edge device. For more information, see Reviewing your VMware MVE connection settings.
